TIFRX-1A, TIFXP-1A
Refrigerant Leak Detectors
|
|
 Features:
- Detects ALL Halogenated refrigerants in HVAC Systems
- Detects leaks of Sulfur Hexaflouride (SF6) used as
a dielectric and insulator in:
- High voltage breakers
- Gas insulated substations (GIS)
- Cables and tubular transmission lines
- Electrostatic generators and transformers
- >>
Spec Sheet
|
 |
Model:

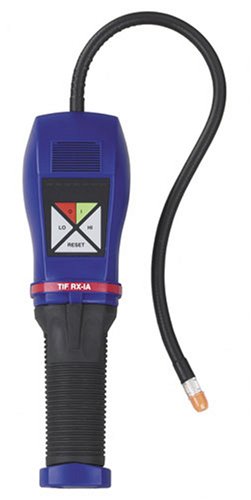

TIF RX-1A
- Two (2) sensitivity levels
- Detects ALL halogenated refrigerants
- 14" flexible stainless steel probe with Teflon liner
- All new ergonomic design with rubber cushion grip handle
- Advanced Digital Signal Processing, monitors sensing tip
up to 2000 times per second
- Visual leak size indicators
- True Mechanical Pump provides airflow through sensing
tip
- One-Touch Reset
- Variable frequency audible alarm
- Certified to SAE J1627, UL and CE
|
|
 |
Model:
TIF XP-1A
- Seven (7) sensitivity levels
- Detects ALL halogenated refrigerants
- 14" flexible stainless steel probe with Teflon liner
- All new ergonomic design with rubber cushion grip handle
- Advanced Digital Signal Processing, monitors sensing tip
up to 2000 times per second
- Visual Leak size indicators
- True Mechanical Pump provides airflow through sensing
tip
- Battery Test
- Mute button
- One-Touch Reset
- Variable frequency audible alarm
- Certified to SAE J1627, UL and CE
|
|
Features: |
TIFRX-1A |
TIFXP-1A |
|
|
|
|
Ultimate Sensitivity : |
<0.25 oz./year
(7 gr/yr) |
<0.1 oz./year
(3 gr/yr) |
|
Visual Leak Indication Levels: |
6 (single color) |
18 (tri-color) |
|
Sensitivity Levels: |
2 |
7 |
|
One touch Reset: |
Yes |
Yes |
|
Mute Button: |
n/a |
Yes |
|
Warranty: |
2 years |
3 years |
|
|
Ordering Information: |
|
|
AM-TIFRX-1A |
Refrigerant
Leak Detector with 2 Sensitivity Levels |
|
|
AM-TIFXP-1A |
Refrigerant
Leak Detector with 7 Sensitivity Levels |
|
|
