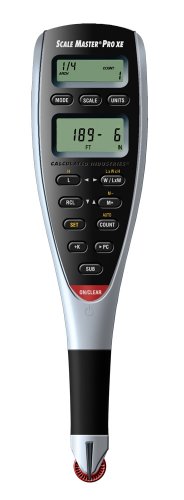

Scale Master ProXE - The Best
Portable, Digital Take-Off Tool with 91 Built-in Scales &
Optional USB PC Interface
Construction Estimators, Contractors or Anyone Who Works with
Blueprints and Plans
construction pro's use the Scale Master ProXE to bid faster and more
accurately. Now it's time for you to gain the competitive edge, and
perform take-offs with speed and confidence! Instantly double-check
plans. Transfer data directly from the Scale Master to your PC & estimating program (with
Optional USB PC interface Kit). Scale Master ProXE helps cut estimating errors and improve profits.
is the most complete
multi-scale digital plan measure ever. The Scale Master ProXE has more scales, more features
and more estimating power -- all combined with our award-winning
quality. The Scale Master ProXE makes it easier to do linear, area and
volume take-offs with speed, accuracy and confidence. With so many
scales and exclusive features, you will find it is faster and easier
than ever to produce profitable, bid-winning estimates!
Scale Master ProXE
- Scale Master performs instant linear, rectangular area and
- 91 built-in scales
- 10 custom scales, for plans that are
- Small, lightweight and totally portable (fits in
- Use it like a pen--just roll and measure!
- Easy-to-read display reads measurement in
feet/inches, metric & other popular dimensional units
- Convert between scales & dimensions
- Calculate rectangular areas/volumes (LxWxH)
- Built-in auto counter!

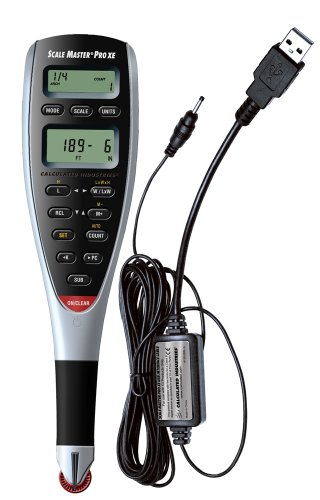

USB PC Interface
(works with USB)
Master ProXE Includes:
- User's Guide
- Protective Hard Case
- Long-Life Battery
Full 1-year Warranty
Scale Master ProXE professional digital plan measure helps you:
- Dramatically Cut Take-Off Time
- Speed Estimates
- Improve Profit
- Reduce Errors
- Improve Crew Productivity
Unlike "old fashioned" scalers or rulers, the Scale Master ProXE
digital and multi-functional device. Yet, it's highly accurate,
portable, and easy-to-use! The Scale Master ProXE contains 91
architectural, engineering, map & metric blueprint scales, simpler &
enhanced features, and even PC interface capability-- to help you
estimate like a pro! It's an "all-in-one" take-off tool.
- User Accuracy
Based on how accurately you roll (or start and stop). Error factor
approx. 2-4%. Highly accurate for estimating.
- A Total of 91 Built-In Scales
With 50 imperial (feet-inch) and 41 metric, there's a scale for
almost any plan.
- Small, Lightweight and Totally Portable (Fits
in Your Pocket)
Even bring it with you to the field!
- Perform Instant Linear, Rectangular Area &
Use it like a pen--just roll & measure! Align the white line on
the red wheel to the starting point, and roll!
- Rolls-in Distances in Either Direction
Accepts dimensions as fast as you can accurately roll them in
either direction and with either hand. Measures regular &
irregular linear distances, or odd shapes.
- Easy-to-Read Display
Reads your measurement in feet/inches or metric.
- Multiple Dimensional Units for Maximum
Select your favorite measurement units: decimal feet, feet-inches,
decimal inches, yards, millimeters, meters, kilometers--including
square and cubic formats of each.
- Convert Between Scales & Dimensions
If dealing with more than one scale or dimension.
- Custom Scale
Eight (8) user-set custom scales. Perfect for scaling faxed or
out-of-scale plans. Calibrates to any plan and then stores that
scale for future use.
- Calculate Rectangular Areas/Volumes (LxWxH)
Just roll & enter length of room, then width & instantly calculate
square footage. Or put in Memory to accumulate total square
- Subtract, Constant & Counter
Lets you subtract if you roll too far. And lets you count items
(e.g., studs, outlets, etc.) & accumulate in memory. Constant (+K)
key allows you add or subtract a constant value to the distance
measured. Great for "drops" and add-ons.
- Durable and Portable for Field or Office Use

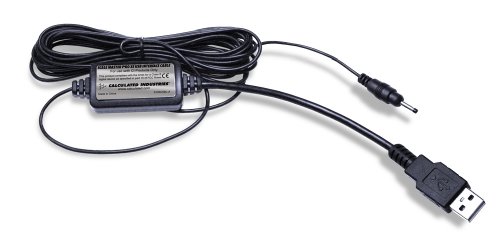

Optional Scale Master ProXE USB PC
Interface Kit -
Scale Master ProXE Specifications:
7.2 x 1.6 x 0.6" (182 x 41 x 15 mm)
- Product Weight (product only with battery):
1.9 oz. (54 g)
- Wheel Resolution:
0.025" (0.635 mm)
- Wheel Composition:
Two 3-volt lithium (CR-2430) batteries (included)
- Bat. Life:
400+ hours usage
- Auto Shut-off:
12 keys; soft-touch silicone rubber
- User's Guide:
44 pp.; 5.0 x 2.5" (127 x 64 mm)
1-Year Limited Warranty
- Hard Protective Case:
High-impact ABS hinged case
- Operating Temperature:
32-130 deg. F (0-55 deg. C)
- Display Type:
LCD segment; 7 digit main display, 3 digit count, 5 digit scale
display, with annunciator-legends
- Display Dimensions:
0.76 x 2.5" (19 x 64 mm)
2-4%, based on user's start & stop accuracy; 10 digit internal
