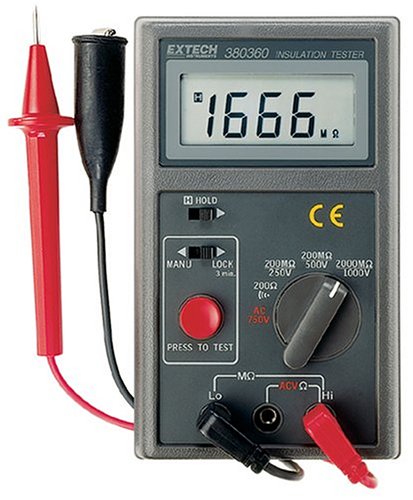

Measure Insulation Resistance of AC/DC Motors, Cables and and Power Tools

Glossary of Terms

Specifications (PDF File)

Features:

• 1mA test current ensures 1000V/500V/250V rated test Voltage

• Three test ranges:
  2000M/1000VDC
  200M/500VDC
  200M/250VDC

• Safety Power Lock enables hands free operation for 3 minute test

• Automatic discharge when safety "Press to Test" button is released

• Auto power off and Data Hold

• Large 0.65" LCD display

• Automatic zero adjustment

• Full function indication

• Overload protection

• Measures Resistance to 200 Ohms plus Volts to 750VAC

• Fast response for both Continuity and low Resistance testing

• Complete with 6 AA 1.5V batteries, heavy duty 30" test leads, alligator clip, large probe, and case with neckstrap
