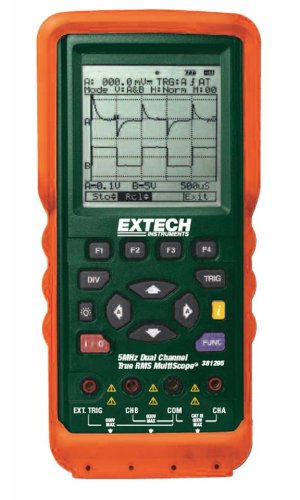

Handheld Oscilloscope and Autoranging True RMS Digital MultiMeter with RS-232 Interface and PC Software

Glossary of Terms

Specifications (PDF File)

Features:

• Easy to use menu driven operation

• Internal or External Triggering

• Auto or Manual setup for horizontal and vertical scaling

• Single shot mode

• Window freeze locks waveform in the display

• Roll Mode for slow repetition waveforms

• Store and Recall up to 16 waveforms and setups

• Sampling Time: 25MS/s Dual Channel; 50MS/s Single Channel

• 132 x 128 Pixel Super-Twist two level backlit display

• Data Hold and Low Battery indication

• Multimeter functions include AC/DC Voltage, Resistance, Continuity,

• Frequency, RPM, Pulse Width, and % Duty Cycle

• RS-232 PC Interface and software for transferring waveforms and data

• Complete with four test leads, four alligator clips, protective holster, Ni-MH battery pack, AC Adaptor/Charger, RS-232 Cable, Windows®

• 95/98/NT/2000/ME/XP compatible software, and carrying case
