Built-in Recorder Stores up to 16000 Readings with RS-232 Interface & Software to Transfer Data to a PC

Glossary of Terms

Specifications (PDF File)

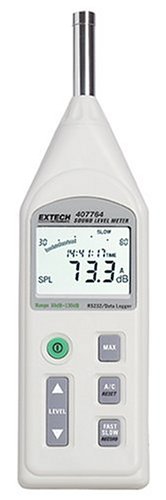

Features

• Autoranging over 6 ranges from 30 to 130dB with high accuracy to ± 1.5dB and 0.1 dB resolution

• Large LCD display with function indication and fast 50 segment bar graph display

• Time and Date are logged with data

• Stored data can be easily transferred to a PC via RS-232 interface and analyzed using software & cable provided

• A & C weighting and Fast/Slow response

• Tripod mount provided on rear

• Max Hold function

• Meets ANSI S1.4 Type II and IEC 651 standards

• Internal self test when powered ON

• Detachable 0.52"(13.2mm) diameter condenser microphone

• Analog AC/DC recorder output 10mVDC/decibel

• Dimensions:10.4x2.8x0.8"(265x72x21mm); Weight: 10oz.

• Complete with microphone wind cover, PC software on 3.5" diskette, Serial cable, 4 AA batteries and carrying case

• Monitor office or plant noise and store data for later reference and analysis

• Maintain noise level statistics for internal and external audits

• Perform machinery noise monitoring or use for noise reduction programs

• Store data for error free community noise monitoring
