Clamp-on MultiMeters - Functions Include Capacitance and Temperature, Ergonomically Designed in Rugged Double Molded Housing

Glossary of Terms

Specifications

Features:

• AC/DC Voltage, Resistance, Frequency, Capacitance, Temperature, Diode, and Continuity
• Peak function captures inrush currents and voltage transients
• Data Hold “freezes” data in display
• 1.2" (30mm) circular jaw opening for large cables (500MCM)
• Auto power off
• Complete with test leads, 9V battery
• Type K bead wire probe (-4 to 482°F/-20 to 250°C) (models EX720, EX730) and carrying case

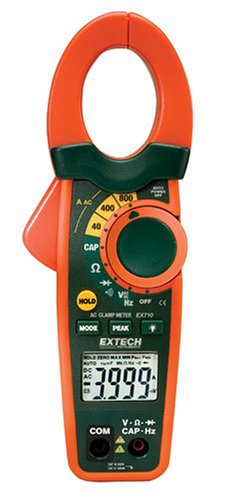

EX710 Features:

• 800A AC Current
• Average responding

EX720 Features:

• True RMS

• 800A AC Current

• Type K thermocouple temperature measures to 1832°F/1000°C (bead wire temperature probe included (-58 to 482°F/-50 to 250°C))

EX730 Features:

• True RMS

• 800A AC/DC Current

• Type K thermocouple temperature measures to 1832°F/1000°C (bead wire temperature probe included (-58 to 482°F/-50 to 250°C))

• DC Current with Zero function

• Also available: EX730 Professional Clamp Meter Test Kit

Specifications: (click table below for larger view)
