Clamp-on Multimeter with Built-in Non-Contact InfraRed Thermometer

Glossary of Terms

Specifications

Features:

• Non-contact InfraRed Temperature measurements with laser pointer (all models)
  -58 to 518ºF/-50 to 270ºC
• Peak hold captures inrush currents and Transients
• MultiMeter functions include AC/DC Voltage, Resistance, Capacitance, Frequency, Diode, and Continuity
• 1.7" (43mm) jaw opening for conductors up to 750MCM or two 500MCM
• 4000 count backlit dual display
• Features include Data Hold and Min/Max
• Autoranging with manual range button
• Auto Power off
• Complete with test leads, 9V battery, and belt holster
• Type K probe (-4 to 482°F/-20 to 250°C) included with models EX820 + EX830

EX810 Features:

• 1000A AC Current
• Average responding

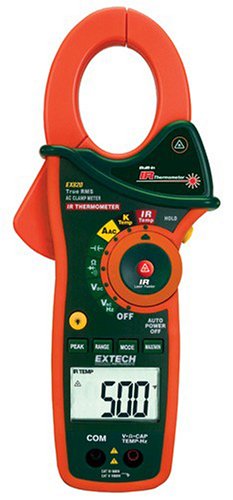

EX820 Features:

• True RMS

• 1000A AC Current

• Type K thermocouple temperature measures to 1832°F/1000°C (bead wire temperature probe included (-58 to 482°F/-50 to 250°C))

EX830 Features:

• True RMS

• 1000A AC/DC Current

• Type K thermocouple temperature measures to 1832°F/1000°C (bead wire temperature probe included (-58 to 482°F/-50 to 250°C))

• DC Current with Zero function

Specifications: (click table below for larger view)
