Best Value Paperless Chart Recorder in the Market that’s Easy to Set Up and Operate

Glossary of Terms

Specifications

Features:

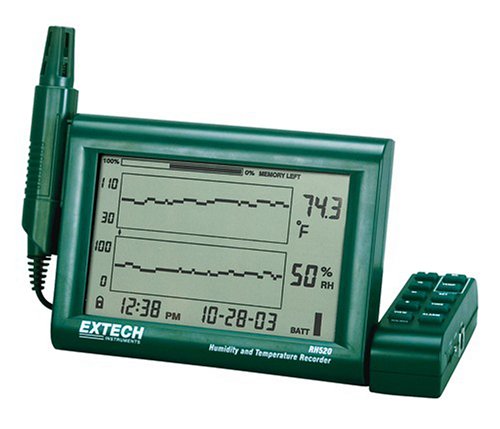

• Simultaneous numerical and graphical display of Humidity and Temperature readings, plus Time and Date

• Measures Humidity (10 to 95%RH) and Temperature (-20.0°F to 140.0°F) plus calculates Dew Point

• Large dual graphical LCD displays with adjustable vertical and horizontal TAC resolution

• Internal memory records up to 49,000 data points and can be transferred to a PC via RS-232 serial port for further data analysis

• LCD indicates percentage of memory remaining

• Replaceable probe does not require recalibration

• Detachable probe extends up to 1 meter for measurements in closed environments

• Audible and visual alarm with Hi/Low setpoints

• Output socket used with optional external alarm module

• Scroll the cursor to display selected data recorded

• Desk or wall mount

• Complete with built-in stand, detachable probe with 3ft (1M) cable, RS232 cable, 110VAC adaptor and 3 AA batteries

• Monitor and record Laboratory or clean Room temperature and humidity history

• Record process conditions

• Generate warning when conditions are outside required limits - use the RH520 with optional relay module and illuminated sign for a complete monitoring system. (items sold below)

• Monitor controlled environment areas such as freezers, storage areas and other critical areas

• Store humidity and temperature historical data for report generation
