Network (LAN)
Cable Testers, Cable TV (CATV) Testers
Instruments
That
Test the Integrity of Local Area Network Cabling and
Coax Cable TV Wiring
Most Orders over $25 ship
FREE
with Super Saver Shipping
LAN Network & CATV
Cable Testers
Cable Tester 10/100, Coax and
TP - TrendNet TC-NT2
Check Continuity and Configuration of
Network Cables LinkMaster test device used with UTP (Unshielded
Twisted Pair) and STP (Shielded Twisted Pair) wiring. Checks
continuity and configuration of wiring with unshielded and
shielded modular plugs. Tests for open circuits, shorts,
miss wires, reversals, and split pairs. Shield detection
tests a cable's shield integrity. Main unit and one remote
allow one person testing of T568A, T568B, 10BaseT, and Token
Ring. Remote has wiring chart identifying T568A and T568B
wiring configurations. Debug feature quickly identifies
which cable pairs have a specific wiring fault. Battery low
LED indicates replacement is necessary
Ideal
LinkMaster - Network Testing Device
Check Continuity and Configuration of
Network Cables LinkMaster test device used with UTP (Unshielded
Twisted Pair) and STP (Shielded Twisted Pair) wiring. Checks
continuity and configuration of wiring with unshielded and
shielded modular plugs. Tests for open circuits, shorts,
miss wires, reversals, and split pairs. Shield detection
tests a cable's shield integrity. Main unit and one remote
allow one person testing of T568A, T568B, 10BaseT, and Token
Ring. Remote has wiring chart identifying T568A and T568B
wiring configurations. Debug feature quickly identifies
which cable pairs have a specific wiring fault. Battery low
LED indicates replacement is necessary
MicroMapper
- Fluke MT-8200-49A
Quickly Test and Verify Integrity of
Ethernet Twisted Pair Cabling
Testing of twisted pair cables for open circuits, shorts,
crossed pairs, reversed pairs and split pairs. Easy-to-read
fault display. Tone generator for tracing installed cables
hidden in walls, floors and ceilings. Remote unit enables
one-person testing of installed cables.
MicroScanner
- Fluke MS2-100
Advanced Tester Verifies All Common
Media Types - RJ11, RJ45, Coax
Revolutionary Interface – Graphical wiremap, length, cable
ID, and distance to fault displayed on one screen.
Multimedia Support – Tests all common media types including
RJ11, RJ45, Coax, with no need for adapters. IntelliTone
Toning – Locates virtually any cable or wire pair with
IntelliTone digital and analog toning. VDV Service Detection
– Verifies today’s media services, including 10/100/1000
Ethernet, POTS, and PoE. Rugged Housing – Integrated rubber
holster enhances grip and makes it durable enough for the
toughest jobs. Oversized Display – Large, backlit LCD makes
results crystal clear whether in bright sunshine or in a
dark closet.
MicroScanner
Kit - Fluke MS2-KIT
Complete Kit Verifies All Common Media
Types - RJ11, RJ45, Coax
MicroScanner2 Professional Kit includes: MS2-100
MicroScanner2 Cable Verifier with main wiremap adapter,
remote identifiers #2-7, IntelliTone Pro 200 probe, shielded
twisted-pair RJ45 patch cord, RJ11 patch cord, clip-set RJ45
to 8 alligator clip bare wire adapter, F Coax push on patch
cord, accessory soft pouch, (2) AA alkaline batteries, (1)
9V alkaline battery, MicroScanner2 Getting Started Guide,
MicroScanner2 Owners CD, IntelliTone Pro Getting Started
Guide, IntelliTone Pro owners CD, packaged in a deluxe Fluke
Networks carry case
Network
(LAN) & CATV Cable Tester
Tests LAN Cabling & Cable TV Wiring
for Shorts, Opens, Miswires & Reversals Tests EIA/TIA568A and 568B and 10Base-T and "F"
connector for troubleshooting CATV coaxial installations.
Shield detection tests shield integrity. Tests installed
wiring and jumper cables. Tests shielded or unshielded
twisted pair cable. Tests Cat 5e, Cat 5, Cat 4, and Cat 3.
Tests cable lengths from 3 to 600ft (0.9 to 183m)
Test-Um
Cable Tester / Analyzer, LanRoamer Pro, 8 Units
Professional Quality Network & LAN
Cable Tester with 8 Remote Units Measures cable length as part of cable test and as a
stand-alone function. Tests for shorts, opens, miswires,
reversals and split pair errors. Identifies multiple faults
clearly without interpretation. Clear wire-mapping form
displayed on 2-line, 16-character LCD display.
Auto-off/Auto-on. Up to 10 times better battery life than
other testers. One-ended testing with Pre-test mode for fast
results. Built-in tone generator with selectable tones and
pair capability. Includes 8 remotes and carrying case.
NetTool
Pro Network Cable Tester - Fluke NT-PRO
Dramatically Shortens Local Area
Network Troubleshooting Time
You can automatically Ping the default router, a single
station or device, or a list of up to 10 devices. NetTool's
Ping feature gives you instant information - how a network
device is connected and acting on your local segment - and
makes solving connectivity issues simple. NetTool Pro also
offers new reporting capabilities which allow you download
and share test results -from identifying network resources
to PC configuration-with your entire team. This network
documentation is especially helpful when working as part of
a team or when a problem needs to be escalated to a more
experienced troubleshooter. The NetTool Pro model includes
all Inline features and benefits as well

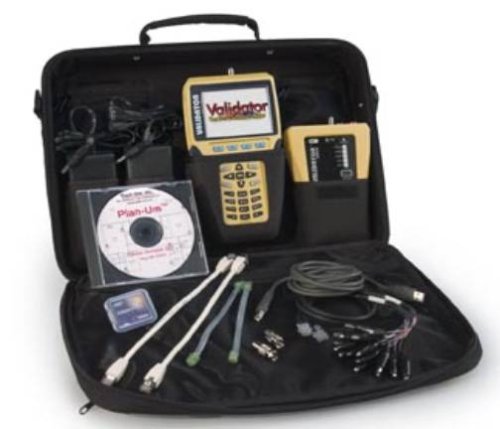

Test-Um
NT950 Validator LAN Certifier Kit
Professional Quality Network & LAN
Validation and Certification 4" TFT LCD Color Screen, USB and Serial Ports. ---
Lithium-Ion rechargeable battery for both main unit
and remote --- 32 MB flash card memory
Supports IEEE 802.3 data speed
carrying specs to 1 gigabit
Store data on a laptop/PC or in
flash card memory up to 2 GB
Continuity testing on telephone
line, report length
Continuity testing on coax lines,
report length
Continuity testing of single
pairs (security, speaker wires)
Diagnose failing cables per
568A/B
Tests shielded or unshielded
Cat3, 5, 5E, 6
Wiremap with faults
Distance to fault (open or short)
TDR
Length of each pair tested
Tone generation capability
Tests interconnect specifications
per TIA 568/570, including opens, shorts, mis-wires,
split pairs, etc.
Cable Quality Tests: SKEW;
NEXT-All combinations on all pairs (12); Channel
Response; Echo Testing (Return Loss) impedance
mismatches; Signal to Noise Ratio; Attenuation;
Amplitude; Return Loss; Bit Error Rate (BERT)
