Circuit Breaker Finders

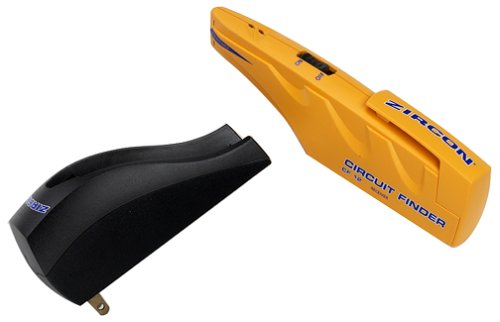

CF12 Circuit Breaker Finder
Instantly Find The Correct Circuit Breaker Without
Turning Circuit Breakers On and Off. Great for
One-Man Operations!
|
 The
CF12 circuit finder quickly and easily allows one person to
determine which breaker controls a specific circuit, and to
turn off power and work on just that circuit without turning
off power to other circuits. CF12 is for indoor use only.
Just plug the CF12's transmitter into the
electrical outlet, then scan the breaker box with the
receiver, and the proper breaker will be identified.
You will be confident the correct circuit is found so power
will not be lost to your computer, clocks, or freezer.
CF12 makes it easy and convenient for you to scan all the
breakers for identification and labeling.
Key Features
-
 Automatic calibration; lights and audio indicate circuit
location
-
Requires no adjusting
-
Works quickly and efficiently
-
Units snap together for storage
-
Ergonomic design for easy targeting
Applications
Turn off that circuit
before you:
- Change an outlet
- Upgrade wall switches
- Install dimmer switches
- Install new lighting fixtures
The ZIRCON
Advantage
-
Finds breakers
faster and more efficiently without trial-and-error work
or accidental shutoffs.
-
Be confident
the correct circuit is found so power is not lost to
computer, clocks, or freezer.
-
Scan for easy
identification and labeling of all breakers.
Technical
Information
|
Dimensions |
Receiver: 7 in. L x 1.9 in.
H x 1.4 in. W (CF12)
6.3 in. L x
1.5 in. H x 1.2 in. W (CF12 Pro)
Transmitter: 5 in. L x 2.1 in. H x 1.8 in. W (CF12)
4.1 in. L x
2.25 in. H x 1.5 in. W (CF12
Pro) |
|
Weight |
Receiver: 5.0 oz. (with battery)
Transmitter: 4.0 oz. (CF12)
(5.0 oz - CF12 Pro) |
|
Battery type |
9-V alkaline |
|
Estimated Battery Life |
Approximately 50 hr. with
alkaline battery |
|
Power |
Transmitter: 110-120
V AC, (1.5 W max), folding 2-prong AC plug (CF12)
- 80 - 277 V AC (CF12 Pro)
Receiver: 9-V transistor type |
|
Working Power Range |
110 -120 V AC (CF12)
80 - 277 V AC, 50 or 60 Hz (CF12
Pro) |
|
Operating temperature |
20° to 120°F (-7° to 49°C) |
|
Storage temperature |
-20° to 150°F (-29° to 66°C) |
|
Humidity |
80% RH (noncondensing) |
|
Water resistance |
Splash and water resistant,
not waterproof |
|
Compliance certifications |
UL, CUL, FCC |
|
CF12
Pro Circuit Breaker Finder Kit
|
 The
CF12 Pro Breaker Finder Kit
is
a complete circuit- finding tool kit for locating
circuit breakers in residential, commercial, and
industrial environments. It includes transmitter,
receiver, clips, light socket adapter, blades, and
plug adapter.
This kit helps you find which breaker controls a
specific circuit so you can turn off power and work on
just that circuit without turning off power to other
circuits. CF12 Pro is for indoor use only.
Key Features:
- Blades allow
easy access to most outlets,
including industrial 230 and 240 volt
-
Patent-pending sensing technology
- Automatic
sensitivity adjustment—no knobs or dials
- One-light
simple—green LED indicates proper breaker
- Clips provide
easy access to commercial lighting circuits,
unfinished outlets, etc.
- 120 VAC plug
adapter and light socket adapter to use with
finished circuits
- Includes
rugged, lockable case
- Ergonomic
design for easy targeting
Applications:
- Install or remove appliances
and electronic or home theater equipment
-
 Work on specific circuits in
computer rooms or factories without interrupting
others
- Isolate circuits for repair
or replacement in apartment or office buildings
Zircon Advantage:
-
Automatic calibration; green light and audio
indicate correct circuit
-
Finds
breakers faster and more efficiently without
trial-and-error work or accidental shutoffs
-
Be
confident the correct circuit is found so power is
not lost to other electrical equipment or
appliances; i.e., computer, clocks, or freezer.
-
Scan for
easy identification and labeling of all breakers
|
|
|
