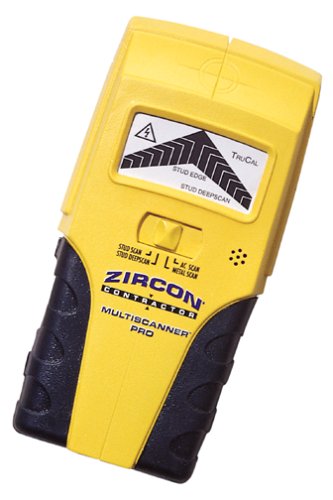

MultiScanner Pro SL
finds studs, metal, and hot AC wiring behind walls, floors,
and ceilings.
Key Features
- Finds both
wood and metal studs
- AC scanning
to trace hot wires
- Metal
scanning for finding pipes
- Large LCD
screen for clarity
- SpotLite®
Pointing System
Applications
Find the edges of wood
or metal studs or joists to:
- Hang
cabinets, pictures, mirrors, and shelves securely
- Install
ceiling fans, grab bars, and chandeliers
- Find metal
pipes behind tile and in concrete
- Find
conduit, rebar, electrical boxes, exhaust vents, and
ducting
- Trace hot
wires behind walls, floors, and ceilings

The ZIRCON
Advantage
- Uses a
patented sensor to pinpoint the edges of wood or metal
studs behind walls, floors, or ceilings.
- Turn off
wood and metal scan to look only for hot AC to find and
trace wires, even in plastic conduit.
- Metal Scan
finds rebar in concrete up to 3 inches (76 mm) deep and
copper pipe or metal conduit up to 1-1/2 inches (38 mm)
deep behind walls, floors, and ceilings.
-
Easy-to-understand, on-screen graphics and audio signal
indicate target edges.
- Exclusive,
patented SpotLite Pointing System shines a bright beam of
light over target edges.
Technical
Information
|
Dimensions |
6.38 in. H x 3.07 in. W x 1.34 in. D
(162 mm x 78 mm x 34 mm) |
|
Weight |
6.5 oz. (184 g) without battery |
|
Battery type |
9-V alkaline (not included) |
|
Estimated battery life |
2 years at 10 minutes per day
with alkaline battery |
|
Position accuracy |
Stud Scan mode: typically within 1/8 in. (3 mm) using
the dual scan and mark procedure
DeepScan mode: typically within 3/16 in. (5 mm) using
the same procedure
Metal Scan mode: typically within 1/2 in. (13 mm) |
|
Detection Depth |
Up to 3/4 in. in Stud Scan
mode
Up to 1-1/2 in. in DeepScan mode
Up to 1-1/2 in. for copper in Metal Scan mode
Up to 3 in. deep for rebar in Metal Scan mode
NOTE: Sensing depth and edge detection can vary
due to moisture content of materials, wall texture,
paint, etc. |
|
AC Position Accuracy |
Typically 90–250 V at 50–60
Hz laterally within
6 in. (150 mm) of a hot unshielded wire |
|
AC Sensing Depth |
Typical depth of 2 in. (50
mm) |
|
Operating temperature |
20° to 120°F (-7° to 49°C) |
|
Storage temperature |
-20° to 150°F (-29° to 66°C) |
|
Humidity |
80% RH (noncondensing) |
|
Water resistance |
Splash and water resistant,
not waterproof |
|
