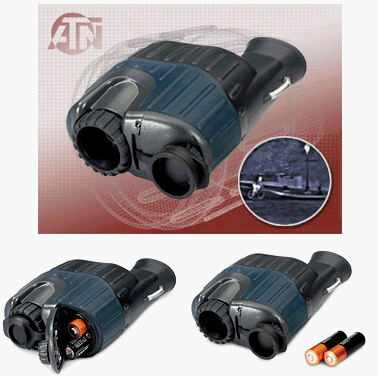

ATN X50 Thermal-Eye Camera

Provides Standard RCA Video Output of Thermal Images

Product Description: ATN X50 Thermal-Eye Camera - ATN - AT-TIMNX050 - ISBN:B0019D65BA

ATN Thermal-Eye X50 System Description The Thermal-Eye X-50 is an affordable Small Lightweight thermal imaging camera. This powerful compact camera is pocked-sized rugged and durable. The primary mission of the X-50 is to support first responders wi

Features:

  • Thermal imaging camera ideal for first responders and security professionals
  • Detects heat signatures up to 1,000 feet away in total darkness or heavy smoke cover
  • Variable brightness display option; rugged housing withstands 6-foot drop onto concrete
  • Runs for up to 2 hours on single pair of AA batteries; external video and power jacks
  • Measures 5.25 x 2 x 4.5 inches (W x H x D); weighs 13 ounces; 1-year warranty

More Information about: 'ATN X50 Thermal-Eye Camera'

The ATN L-3 X50 thermal eye camera sets the standard for affordable, compact, and lightweight thermal imaging cameras. The L-3 X50's primary mission is to support first responders with rapid, easy-to-use, handheld thermal vision hardware that helps find and locate suspects and victims. Because criminals can't hide their heat, this camera is the perfect partner in fighting crime, detecting heat signatures up to 1,000 feet away. This includes heat signatures in total darkness or when vision is compromised by smoke, bright lights, glare, or shadows.

The camera excels in other applications as well, such as fugitive pursuit, search and rescue, disturbed-surface assessment, target location, force protection, and routine patrols. The L-3 X50 is equipped with a variety of must-have features for public safety and security professionals, including a variable brightness display option that adjusts to virtually any lighting condition, a rugged design built to withstand a 6-foot drop onto concrete or underwater submersion up to 9 feet, and a long-eye-relief viewfinder for use with glasses, face shields, or masks. And thanks to the camera's advanced amorphous silicon microbolometer technology, the L-3 X50 can run for up to two hours using a single pair of commercial AA batteries.

Other features include an onscreen battery level indicator; a tactile battery loading feature for stealth nighttime operation; a rugged slip-resistant grip that supports either left- or right-hand operation; a 1/4-20 tripod mount; and external video and power jacks.



The camera's thermal vision hardware detects heat signatures up to 1,000 feet away.
Specifications
  • Field of view: 11 x 8 degrees
  • Focus range: 1 meter to infinity
  • Focus adjustment: Manual
  • Detector type: Amorphous silicon microbolometer
  • Spectral response: 7 to 14 um
  • Pixels: 100 x 80
  • Thermal sensitivity: Less than or equal to150 mK
  • Range to detect a human: Up to 305 meters
  • Display: 320 x 240 pixels
  • Color: Monochrome
  • Contrast adjustment: Automatic
  • Power supply: Two 1.5-volt AA batteries
  • Startup time: Roughly 5 seconds
  • Operating time: 2 hours (AA), 5 hours (lithium)
  • External power supply: 12-volt DC input on rear outlet jack
  • Waterproof: Yes
  • Dimensions: 5.25 by 2 by 4.5 inches (W x H x D)
  • Weight: 13 ounces
  • Warranty: 1 year
About ATN
ATN is a leading manufacturer of precision optics, including night vision equipment, daytime scopes, thermal imaging cameras, and binoculars. The company is known for its innovative designs, ruggedly built products, and unparalleled optical performance, with a robust R&D department devoted to continual advancement. ATN's North American offices are headquartered in South San Francisco.

Sports
Published August 2010
ISBN-13: 0658175340409
UPC: 658175340409
Manufacturer: ATN
Model: 1000380-0001
