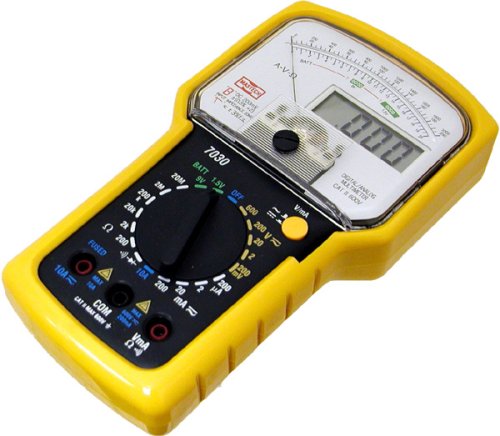

Mastech 8-Function 20-Range Analog & Digital Multimeter with Battery Tester

Product Description: The newly introduced Mastech 7030 analog multimeter is fully featured and can be used to measure AC/DC current and voltage, resistance, as well as diode and continuity buzzer. It also has a built-in 1.5V and 9V battery tester with a 100mA/10mA load respectively. One thing unique about this meter is it comes with a digital display, so you can read both the analog dial and watch the variation of the parameter, and get a fairly accurate reading from the display. Specifications: DC Voltage: 0~200m/2/20/200/600V Digital display: ±0.5% Pointer: ±3%, AC Voltage: 0~2/2/20/200V Digital display: ±0.8% Pointer: ±4%, 200m/600V Digital display: ±1.2% Pointer: ±4% DC Current: 0~200?/2m/20mA Digital display: ±1.0% Pointer: ±3% 200mA Digital display: ±1.2% Pointer: ±3%, 10A Digital display: ±1.5% Pointer: ±3%, AC Current: 0~200?/2m/20mA Digital display: ±1.5% Pointer: ±4%, 200mA Digital display: ±1.8% Pointer: ±4%, 10A Digital display: ±2.0% Pointer: ±4%, Resistance: 0~200/20M? Digital display: ±1.2% Pointer: Pointer: ±3%, 2k/20k/200k/2M? Digital display: ±0.8% Pointer: Pointer: ±3%, Diode Test: Test current: approx 1mA, Test voltage: approx 2.4V, Continuity Buzzer: 0~30? Sound, Battery tester: 1.5V/9V. Accessories include Test leads, 9V battery (installed), Protective holster and User Manual

Features:

• AC/DC V/A 0-200uA 0-200mV 20Mohm 1.5/9V Battery Tester
• 1.5V and 9V battery tester
• Zero Adjustment
• Confirms to the EN61010/IEC1010 standard CAT II 600V
• 1 year warranty

More Information:

The newly introduced Mastech 7030 analog multimeter is fully featured and can be used to measure AC/DC current and voltage, resistance, as well as diode and continuity buzzer. It also has a built-in 1.5V and 9V battery tester with a 100mA/10mA load respectively. One thing unique about this meter is it comes with a digital display, so you can read both the analog dial and watch the variation of the parameter, and get a fairly accurate reading from the display. Specifications: DC Voltage: 0~200m/2/20/200/600V Digital display: ±0.5% Pointer: ±3%, AC Voltage: 0~2/2/20/200V Digital display: ±0.8% Pointer: ±4%, 200m/600V Digital display: ±1.2% Pointer: ±4% DC Current: 0~200?/2m/20mA Digital display: ±1.0% Pointer: ±3% 200mA Digital display: ±1.2% Pointer: ±3%, 10A Digital display: ±1.5% Pointer: ±3%, AC Current: 0~200?/2m/20mA Digital display: ±1.5% Pointer: ±4%, 200mA Digital display: ±1.8% Pointer: ±4%, 10A Digital display: ±2.0% Pointer: ±4%, Resistance: 0~200/20M? Digital display: ±1.2% Pointer: Pointer: ±3%, 2k/20k/200k/2M? Digital display: ±0.8% Pointer: Pointer: ±3%, Diode Test: Test current: approx 1mA, Test voltage: approx 2.4V, Continuity Buzzer: 0~30? Sound, Battery tester: 1.5V/9V. Accessories include Test leads, 9V battery (installed), Protective holster and User Manual

Misc.
Manufacturer: Mastech
Model: 7030
