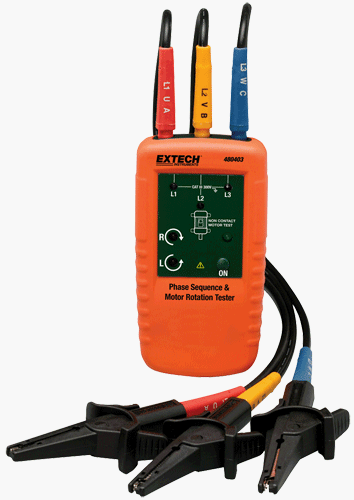

Extech 480403 Phase Sequence/Motor Rotation Tester

Product Description: * 120 to 400VAC rated test range for testing phase orientation of three phase power sources over 2 to 400Hz frequency range * LEDs indicate phase orientation (clockwise or counter-clockwise)and whether each of the three phases is live * Complete with cable and three large color coded alligator clips, pouch case, and 9V battery

Features:

• Indicates rotation direction of the motor
• Determine rotation of a motor without contact
• Ensures that motor does not get damaged from incorrect wiring
• Durable housing is double molded
• Easy to open alligator clips with wide jaws

More Information:

* 120 to 400VAC rated test range for testing phase orientation of three phase power sources over 2 to 400Hz frequency range * LEDs indicate phase orientation (clockwise or counter-clockwise)and whether each of the three phases is live * Complete with cable and three large color coded alligator clips, pouch case, and 9V battery

Misc.
ISBN-13: 0793950484036
UPC: 793950484036
Manufacturer: Extech Instruments
Model: 480403
